| 气动法兰球阀 |
 |
|
·性能规范 Property specifications |
 |
· 法兰连接尺寸按ANSI B16.5或JIS2212.2214。Flange connecting dimensions in accordance with ANSI B16.5 or JIS2212.2214

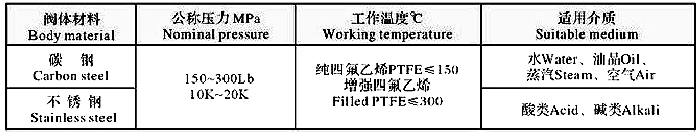

· 阀体材料Body material：WCB、CF8、CF8M、CF3、CF3M
· 球体材料Ball material:SS304.SS316.SS304L.SS316L.Monel
· 用途Purpose:开关型或调节性ON/OFF or Adjusting Type
· 执行器Actuator :双作用或单作用Double or Single Action
· 气源压力Air（supply）pressure：0.4-0.7MPa
· 阀门具有防电、防火结构。Our valves possess the characterristics of Anti-static design and Fire type design
· 可根据用户需要加装电动装置 Electric actuator is available uponrequest
· 阀门具有防电、防火结构。Our valves possess the characterristics of Anti-static design and Fire type design

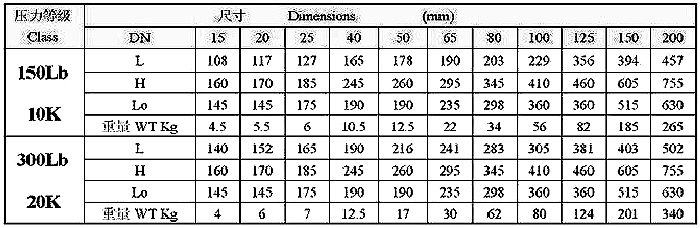

· 产品规格和外形尺寸 Size of products and dimensions
|
 |
| |
|
|
|
